TCXC series planar magnetic separator
TCXC series planar magnetic separator Working principle The granular (powdery) raw material and its magnetic metal inclusions form an annular layer of materials around the magnetic bar after going through the inlet. The magnetic metal inclusions are magnetized and adsorbed on the surface of the permanent-magnet pole plate while the granular (powdery) raw material passes through the magnetic field area and flows outside of the machine from the outlet at the lower end. Therefore the separation is realized.
CharacteristicsThe shell is welded from quality stainless steel.
7 ~ 11 magnetic bars are equipped, with the magnetic field intensity be equal to or more than 4500 Gauss.
The magnetic material is ferroboral with its efficiency of iron removal >99%.
The magnetic irons are specially arranged to ensure that the magnetic field intensity of the surface of magnetic bars is evenly distributed.
The Quick clamping system is also provided.
The drawer-type structure facilitates the cleaning of metal substances adsorbed on the surface of the magnetic bar. Application The machine is mainly used for separation of the magnetic metal inclusions from the raw material in grain processing factories, fodder processing factories and chemicals works in various scales.
Main specifications and technical parameters 1. Inner diameter of machine shell: respectively □200、□250、□300、□350、□400、□500(mm)
2. Yield (t/h)



Type

TCXC20

TCXC25

TCXC30

TCXC35

TCXC40

TCXC50

Out
put

flour

5---8

8---12

10---16

15---20

20---30

30---50

wheat

8---15

12---20

15---25

18---30

25---40

30---80

3. Installation dimensions (mm)

Type
TCXC50

TCXC40

TCXC35

TCXC30

TCXC25

A

560

460

410

360

310

B

133

144

127

110

141

N

4

3

3

3

2

C

16

12

12

12

8

D

Φ10.5

Φ10.5

Φ8.5

Φ8.5

Φ6.5

E

500

400

350

300

250

H

180

180

160

160

160

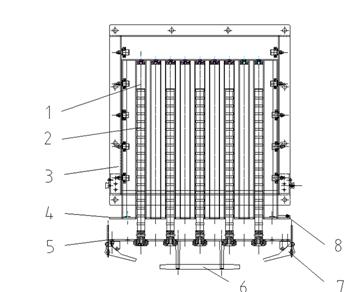

4. Structural drawings

1. Bushing

2. Magnetic bar

3. Shell

4. Drawer

5. Panel

6. Pull handle

7. Clamping device

8. Sealing strip

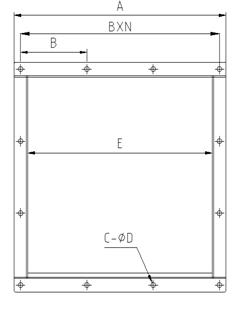

5. Installation drawing
